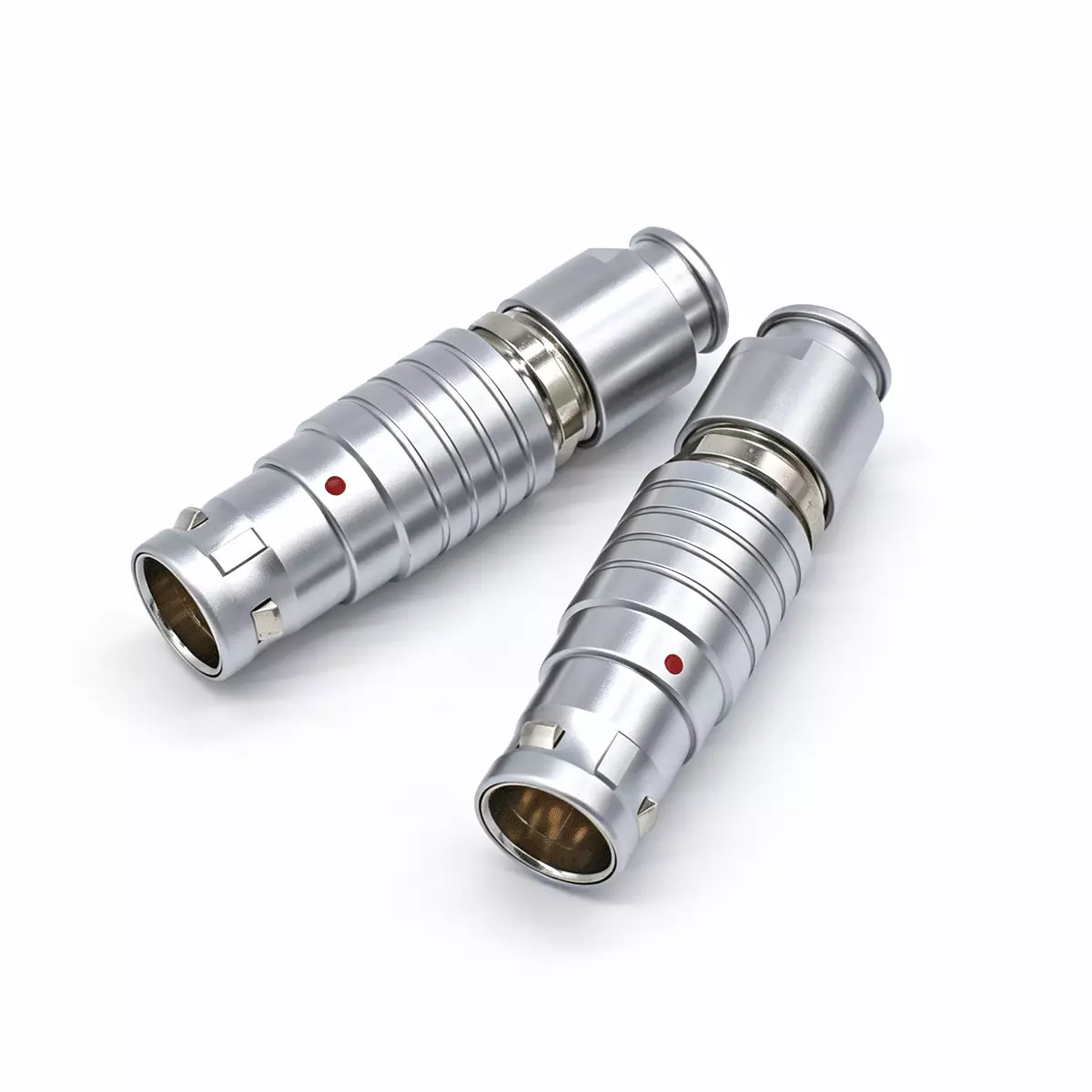

B Series
Indoor dedicated positioning pin positioning, the B series has a wide range of applications as a basic model, affordable price, with push-pull self-locking function, multi-core type 2-32 cores that can be soldered and printed board pin core (straight or curved) protection level can reach IP50, with high cost-effectiveness.

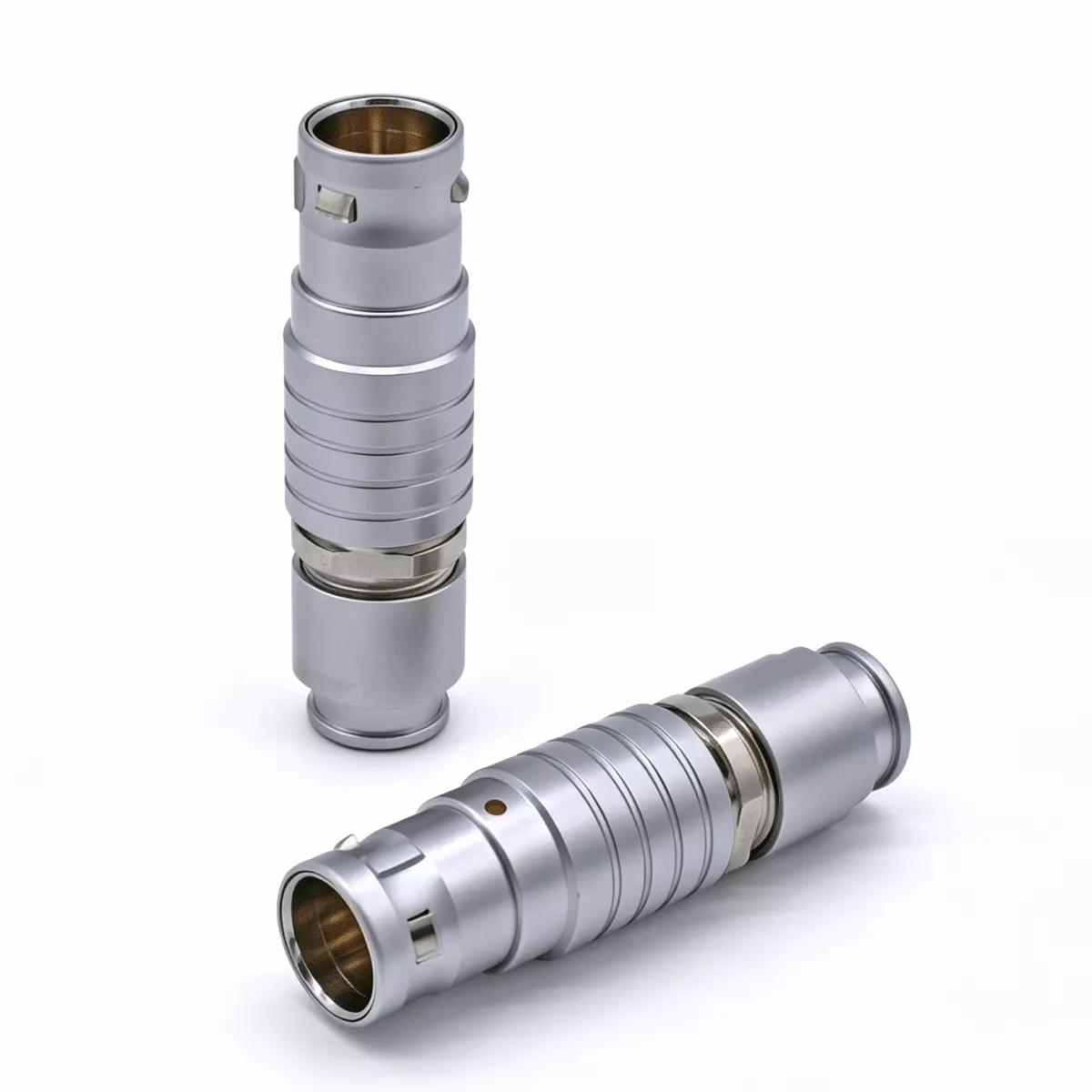

K Series
Outdoor specific positioning pin positioning, the K series connector is specially designed for outdoor applications. All models in this series are waterproof when plugged in, and when correctly assembled with the corresponding cables, the protection level can reach P68 (at least IP66).

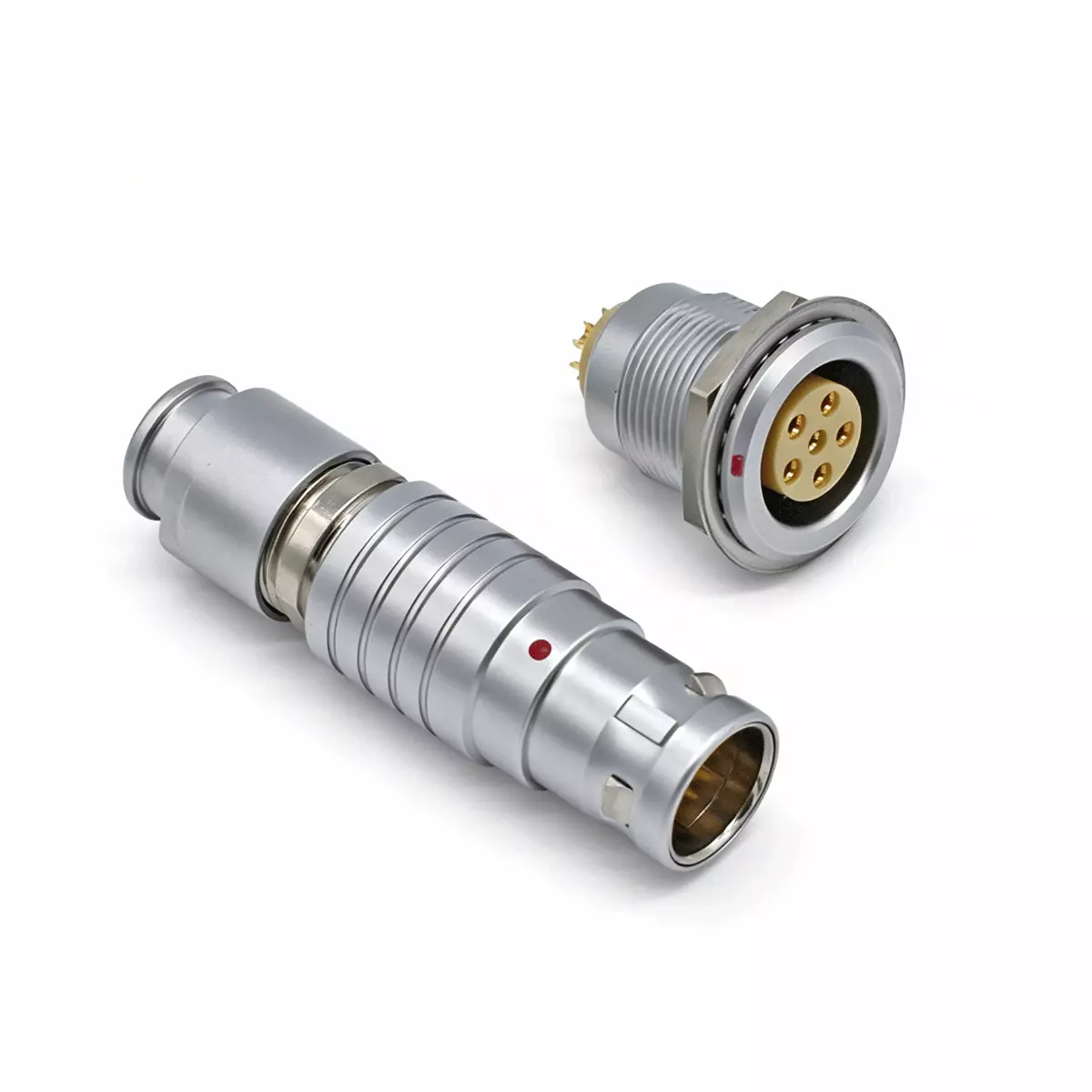

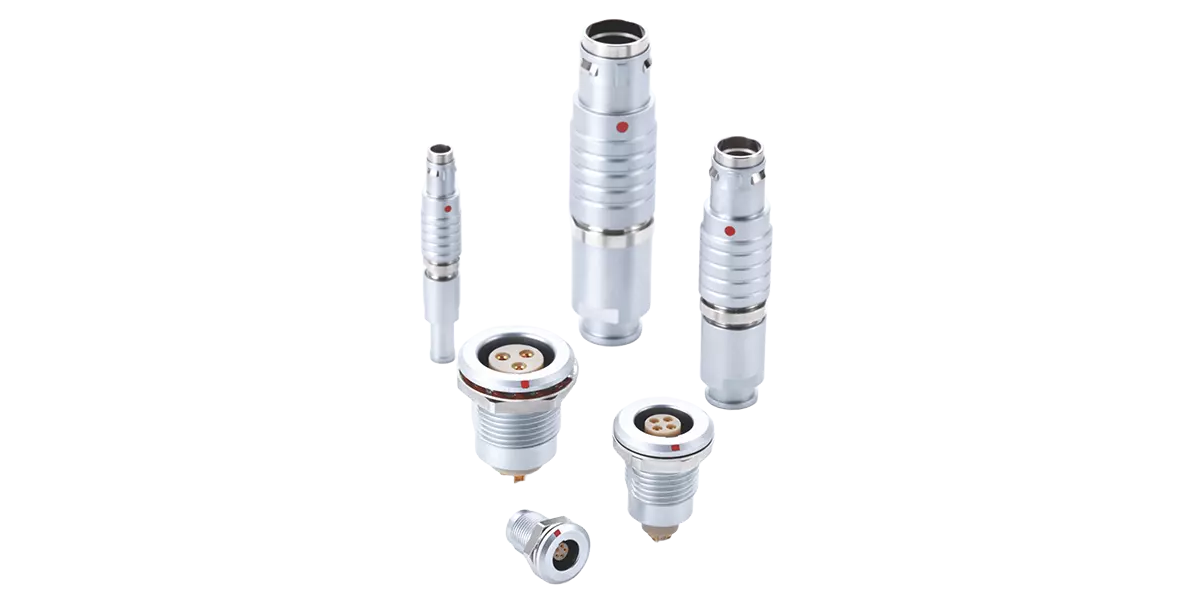

T Series
The outdoor dedicated deepwater positioning pin positioning W series is a connector for deepwater operations, with a waterproof rating of up to 300 meters deep. The thread locking system has a core type of 2-32 cores, high-precision installation, saves space, and 360 ° shielding provides comprehensive EMC protection against electromagnetic interference. Multiple key positions are available to avoid mixing between similar connectors, and blind insertion can be achieved. It is suitable for working environments with pressures up to 30BAR.

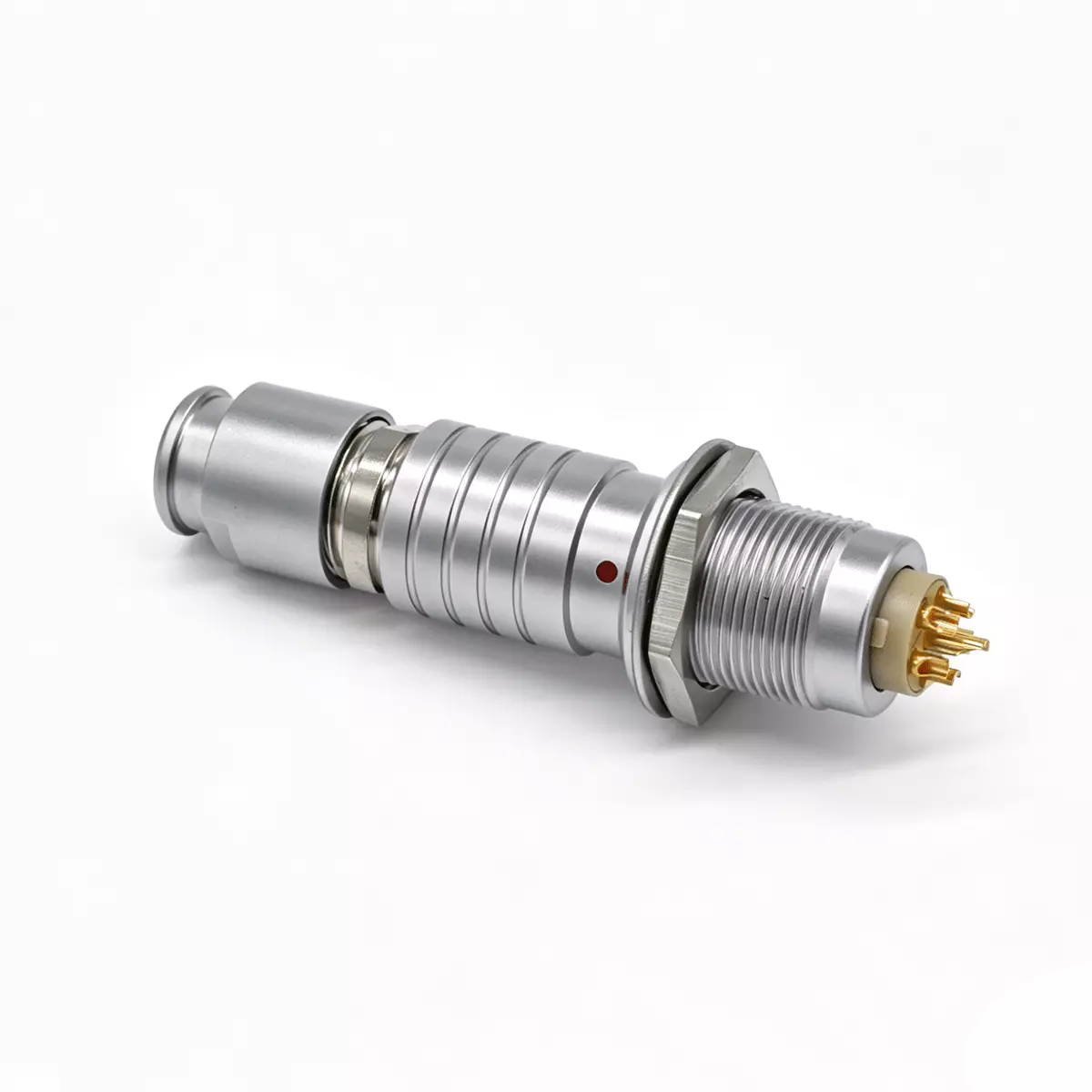

S Series
Indoor dedicated high and low insulators (stepped) are positioned to avoid misplacement. The insulators are equipped with both male and female pin cores, a safe push-pull self-locking system, soldering and printed board connection pin cores (straight and angled), high-density installation, space saving, and 360 ° shielding to provide comprehensive EMC protection (anti electromagnetic interference).

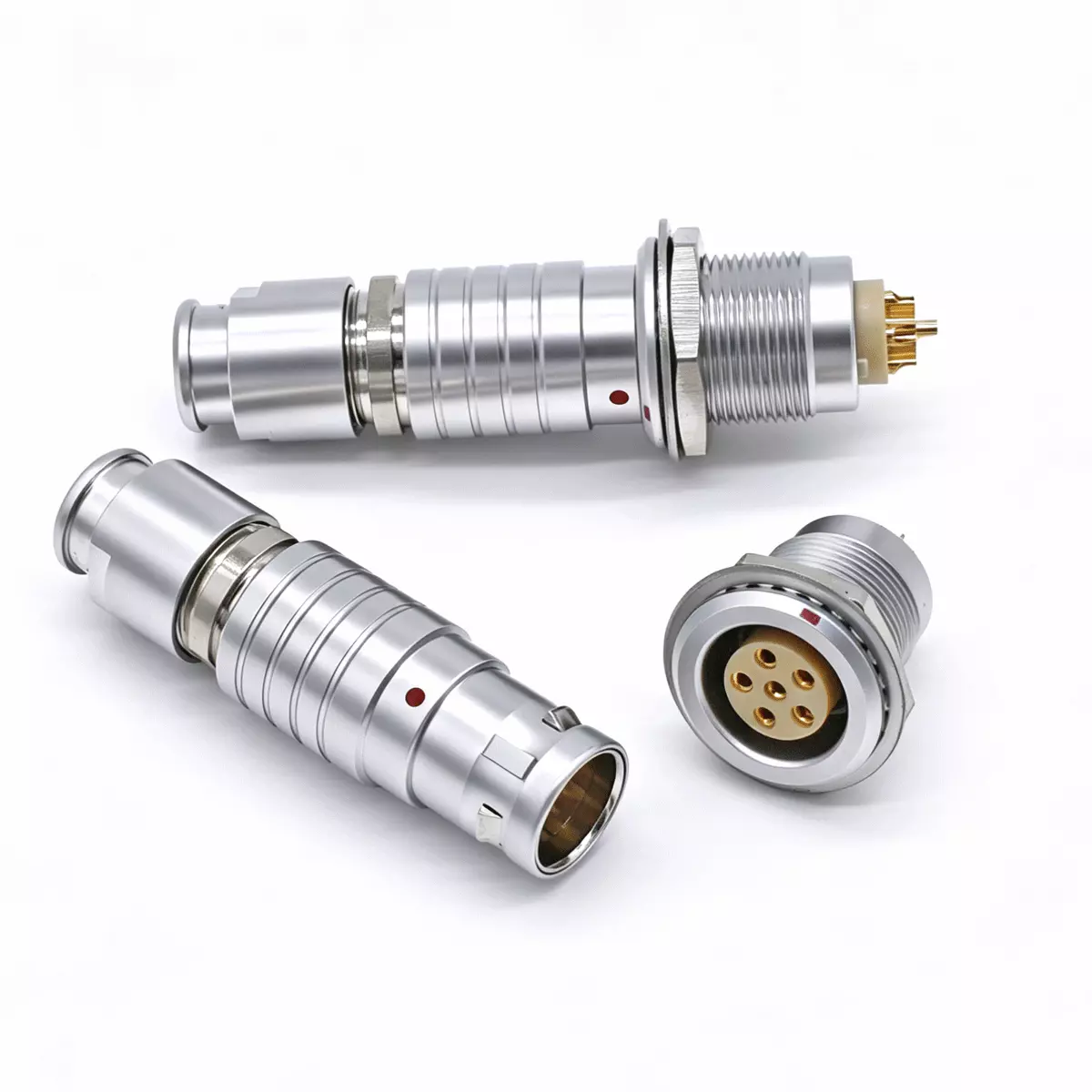

F Series
Outdoor dedicated half moon ring positioning: The socket of the F series connector is a vacuum sealed structure, suitable for push-pull self-locking systems of equipment that require sealing. The half moon ring positioning avoids insertion errors, and the multi-core type 2~19 core high-density installation saves space. The protection level of soldering and printed board pin cores (straight and angled) can reach IP68.

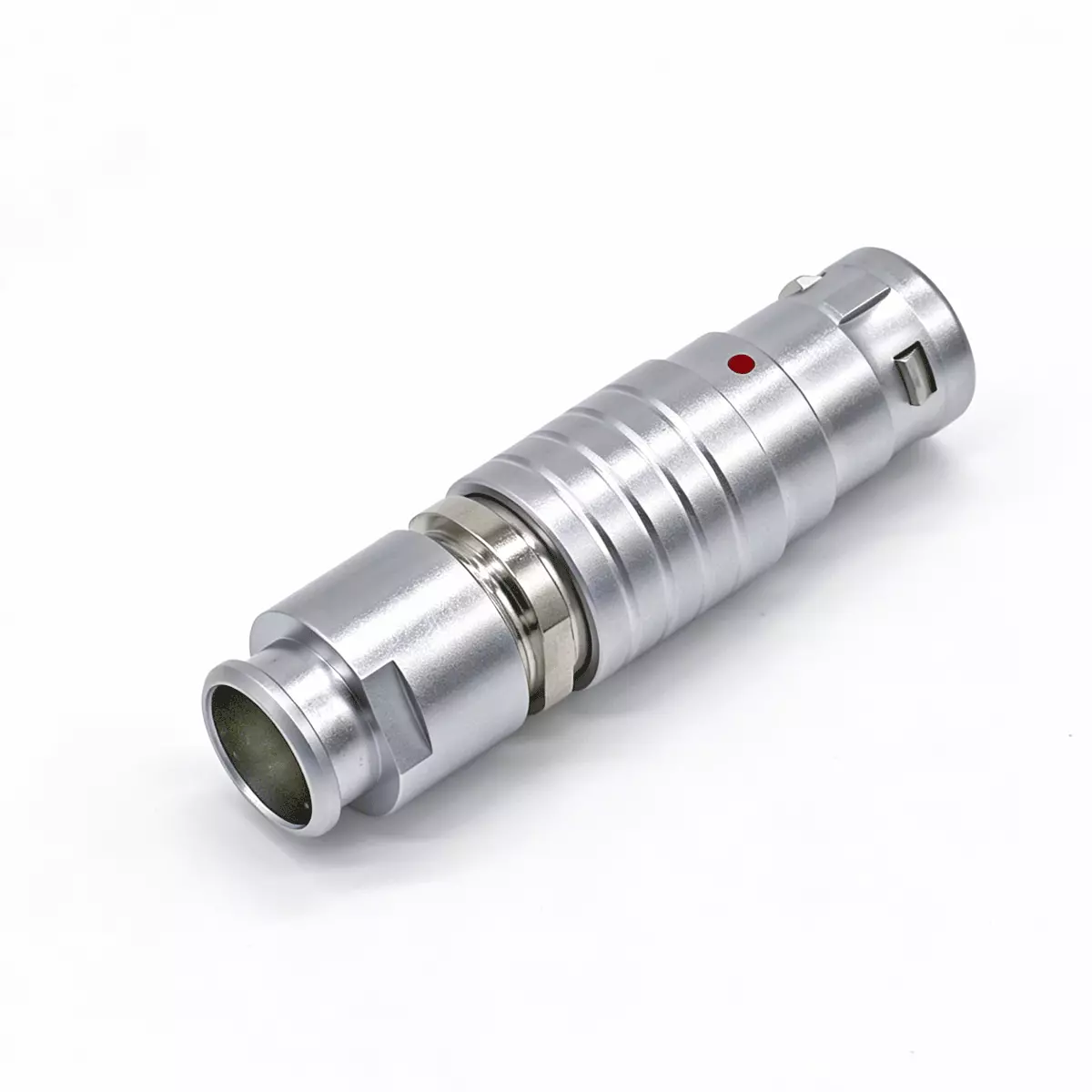

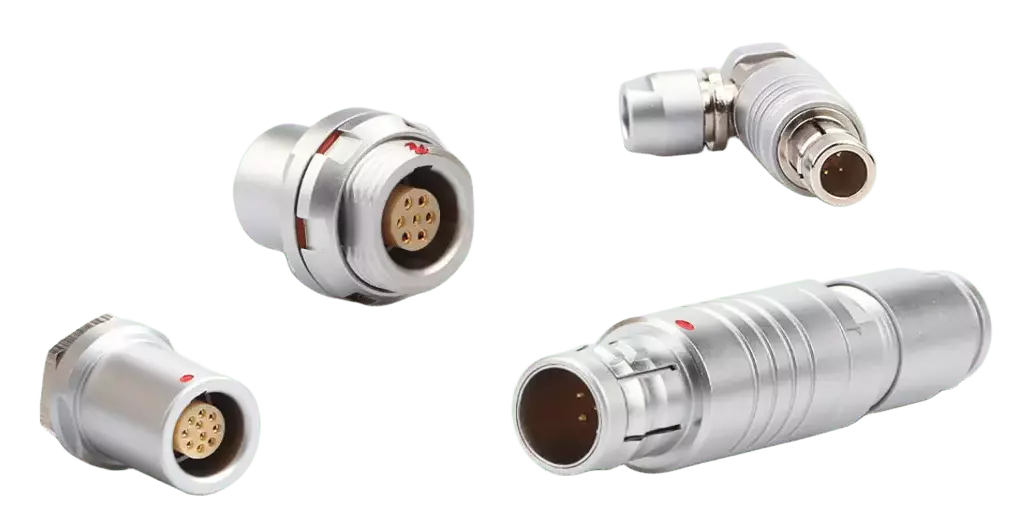

C Series
Outdoor dedicated positioning pin positioning, Y series is a six flap locking single piece dual positioning, positioning keys and positioning slots can achieve blind insertion, simple and convenient operation, all-round EMC protection, extremely strong anti electromagnetic interference, waterproof level can reach IP68.

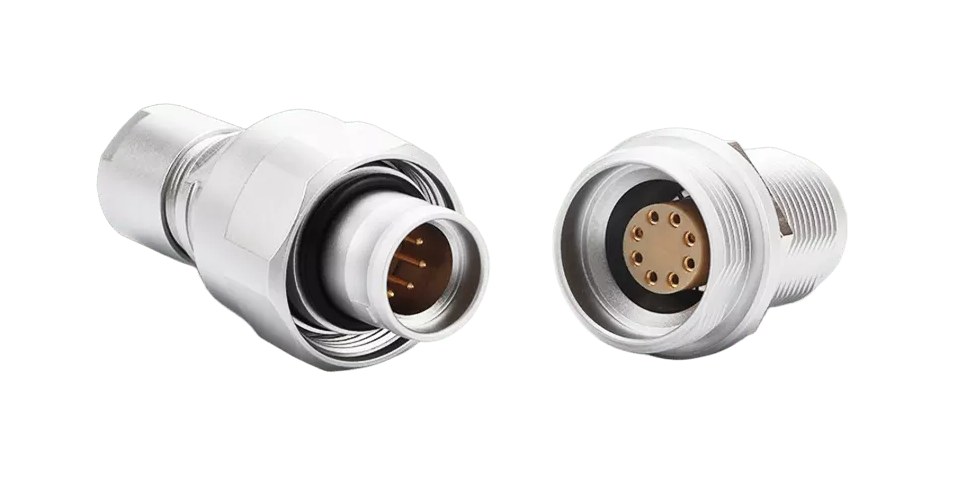

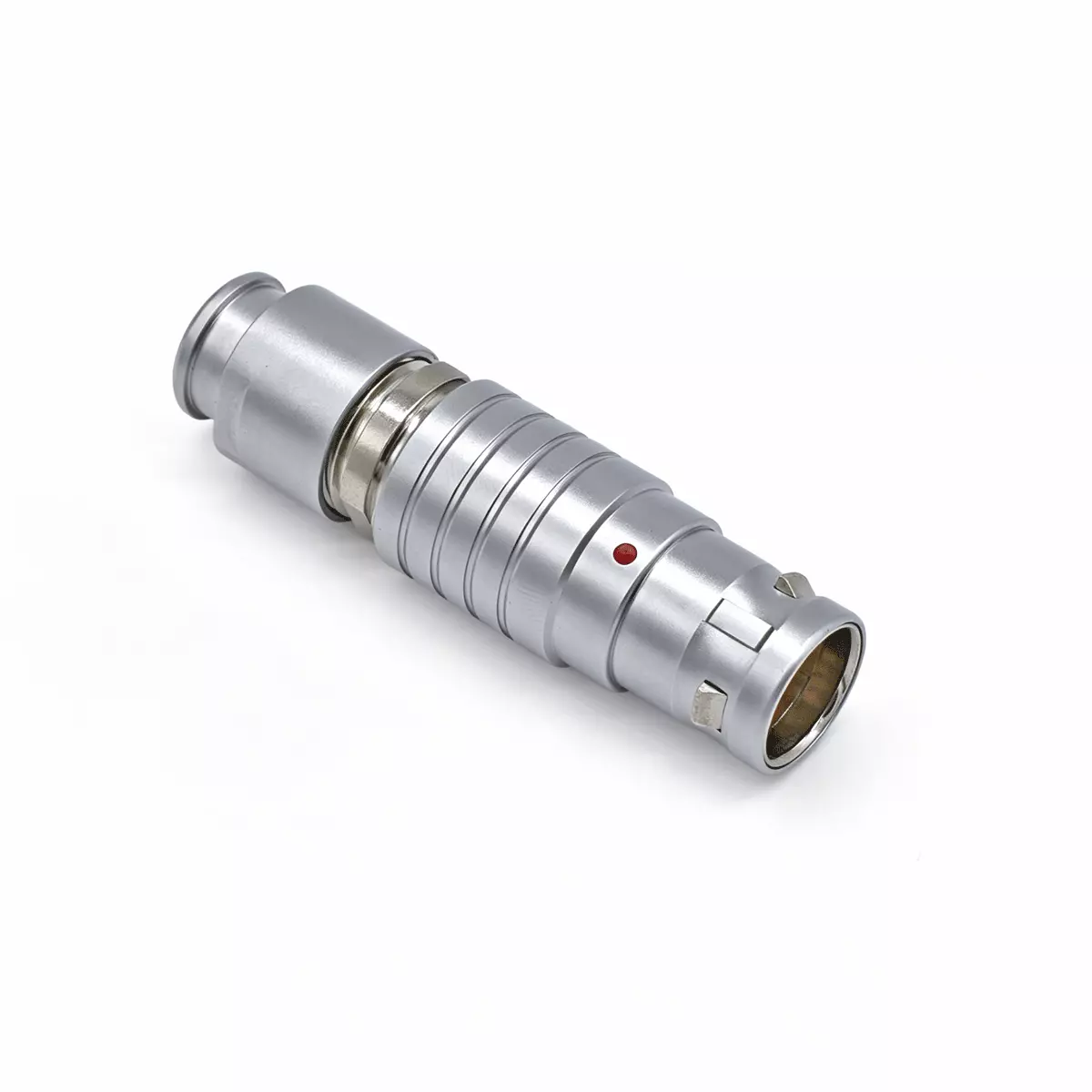

U Series
The outdoor dedicated deepwater positioning pin positioning W series is a connector for deepwater operations, with a waterproof rating of up to 300 meters deep. The thread locking system has a core type of 2-32 cores, high-precision installation, saves space, and 360 ° shielding provides comprehensive EMC protection against electromagnetic interference. Multiple key positions are available to avoid mixing between similar connectors, and blind insertion can be achieved. It is suitable for working environments with pressures up to 30BAR.

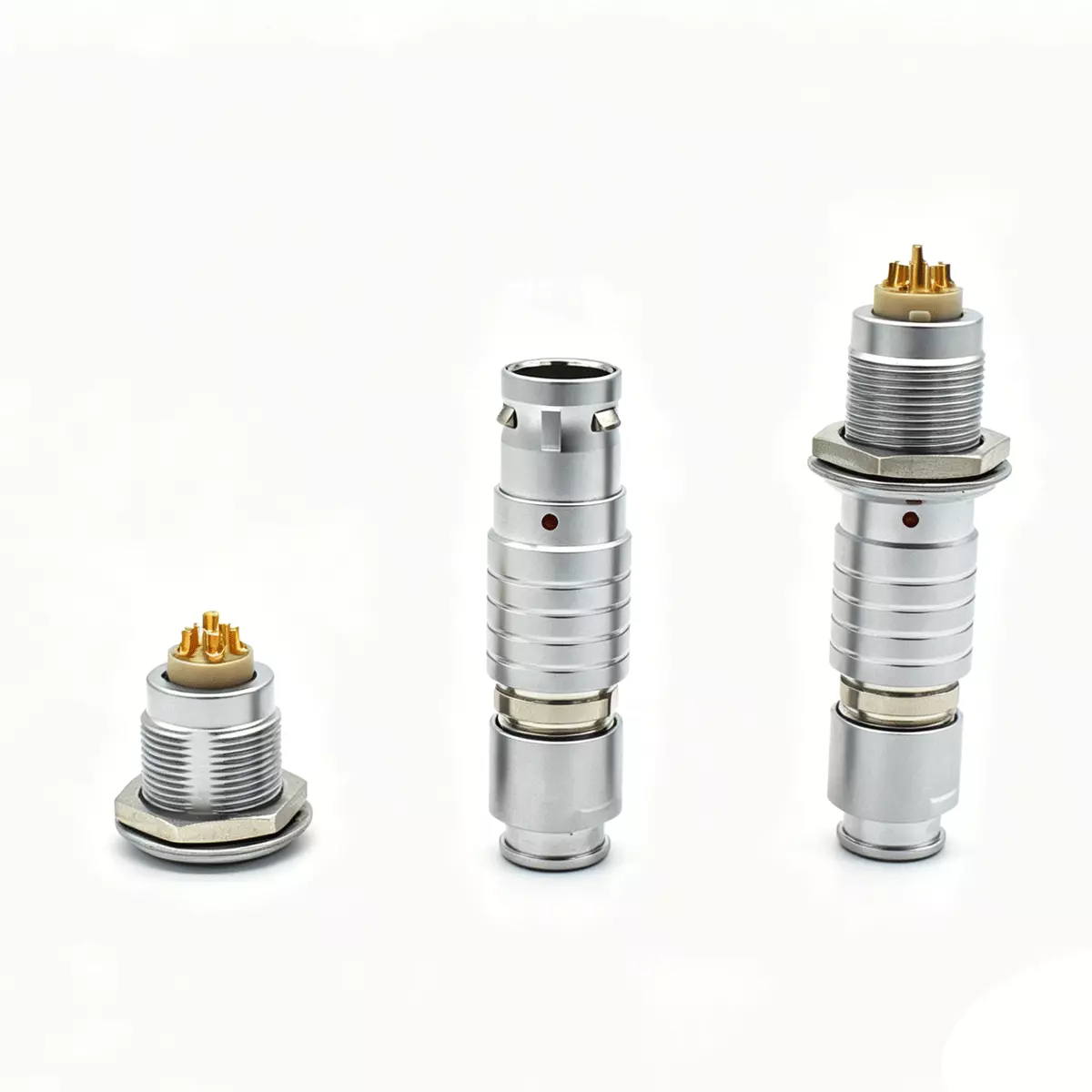

P Series
The P series connectors have passed UL certification and currently come in three sizes: OP (M10) 1P (M14) 2P (M17) series. The P series connectors are widely used for connecting electronic devices, instruments, LED displays, and medical equipment, with medical equipment being particularly widely used, such as monitors, ventilators, anesthesia machines, color ultrasound machines, blood pressure monitors, infrared therapy devices, and electrophysiology, CT， High frequency electric knife, endoscope, defibrillator, dental cleaning machine, electric shock generator, magnetic resonance imaging instrument, etc.
